Sockets and switches Schneider Electric Atlas Design Nature

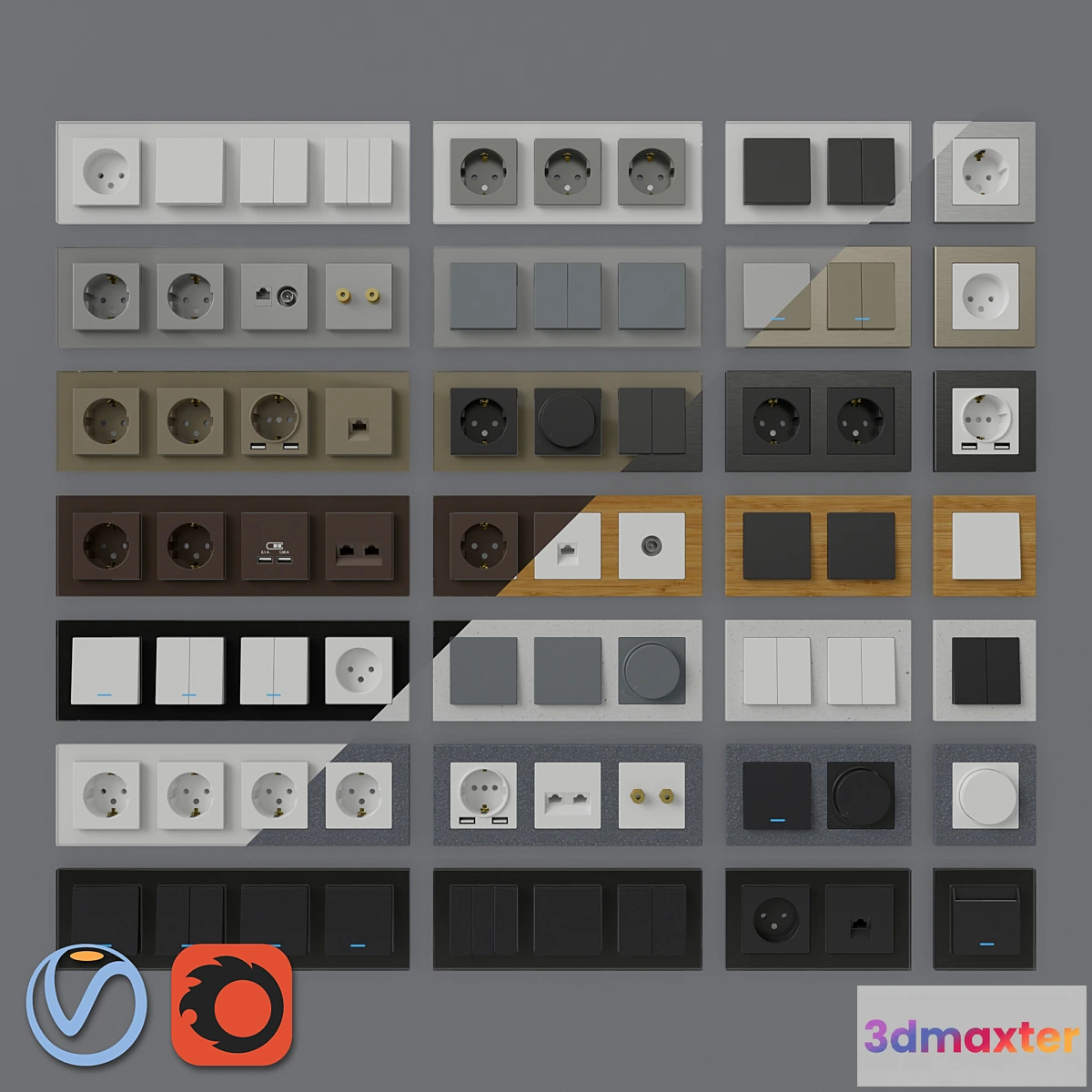

3D model of sockets and switches of the Atlas Design Nature series by French electrician manufacturer Schneider Electric. A feature of this series are frames made of natural materials: metal marble wood glass and frosted glass.

Frames options:
– glass White
– glass Aluminum
– glass Champagne
– glass Mocha
– glass Black
– frosted glass White
– frosted glass Black
– metal Silver
– metal Brass
– metal Onyx
– marble Creme Royal
– marble Ice Grey

Device options:
– White
– Beige
– Aluminum
– Pearl
– Champagne
– Mocha
– Lead
– Emerald
– Steel
– Carbon

The model contains:
– 1-key switch
– 1-key switch with LED lighting
– 2-key switch
– 2-key switch with LED lighting
– 3-key switch
– card switch
– dimmer
– 220 V socket
– 220 V socket with earth
– 220 V socket with two USB ports for charging a smartphone with two sockets (2.4A / 1.2A)
– TV socket
– RJ11 socket for telephone line
– RJ45 socket for Internet single
– RJ45 socket for Internet double
– RJ45 socket for Internet + TV socket
– audio socket
– USB socket for charging a smartphone with two ports (2.1A / 1.05A)
– frames (1 2 3 and 4 posts)

434 796 polygons and 446 930 vertices (no smoothing)

Model for smoothing. Stack with TurboSmooth modifier is not collapsed. The paths to the textures are reset. All objects are logically grouped. Model on a separate layer. High resolution jpg textures. Version for VRay and Corona.

In the scene there are 10 spheres with materials assigned to them for the devices and 13 boxes with materials assigned to them for the frames. Spheres and boxes are logically named so that you can easily and simply select the desired color option.

The LED lighting on the switches is made by VRayBlendMtl for VRay and CoronaLayeredMtl for Corona respectively. To switch off LED lighting remove the checkmarks from the second coat material (led_on) and third coat material (led_light) leaving only the Base material (led_off) active. If you want to change the LED light intensity to match the light sensitivity of your cameras in the scene (the Intensity value parameter in the third Coat material).

Enjoy your use and beautiful renderings!
